ANTI
VORTEX
FLOW CONDITIONING CARTRIDGE COMPONENT

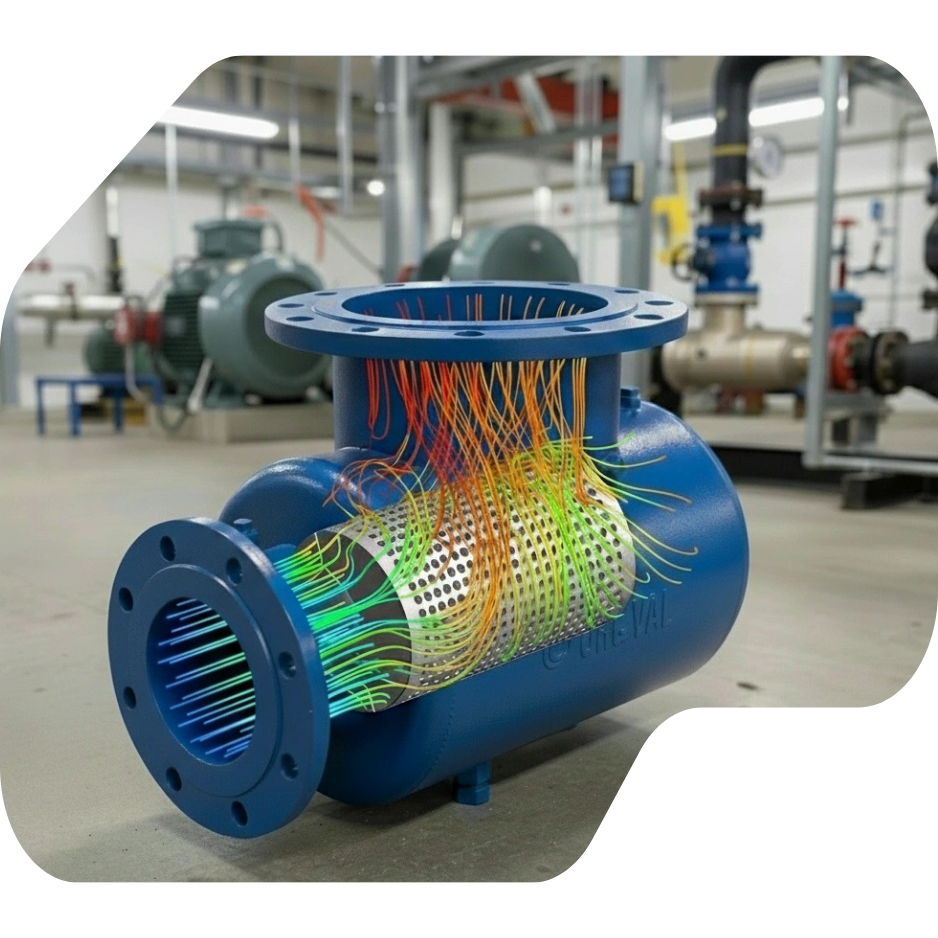

FLOW CONDITIONING CARTRIDGE
The inner cartridge consists of engineered flow conditioning vanes at the core of the unit geared to reduce the fluid rotation safely and smooth the velocity profile at the pump inlet port.
Eliminating swirling inflows and the potential creation of vortices into the pump suction line maintains the performance of each component in alignment with the manufacturer's design specifications, preventing cavitation, and providing longer service life.
PERFECT GEOMETRY FOR MAXIMUM EFFICIENCY
Our unique flow straightener reduces flow distortion and the development of high-energy vortices, effectively reducing energy consumption while maintaining the performance of each component.
The perforated plate is designed to provide reduced pressure drop and better efficiency in demanding applications such as variable speed drives, high temperature service, high flow rates, and high-pressure service.
INNER CARTRIDGE DESIGN
EASY ACCESS TO THE INNER CARTRIDGE
Designed for easy visibility, removal, and maintenance of the inner cartridge system, facilitating the routine maintenance and inspections of your piping systems.
The accessibility design ensures that maintenance can be performed quickly, providing longer service life, improved performance of the equipment, and lower long-term operating costs.
PERFECT FIT FOR INLINE OR END-SUCTION PUMPS
