MONITORING
KEEP TRACK OF PERFORMANCE

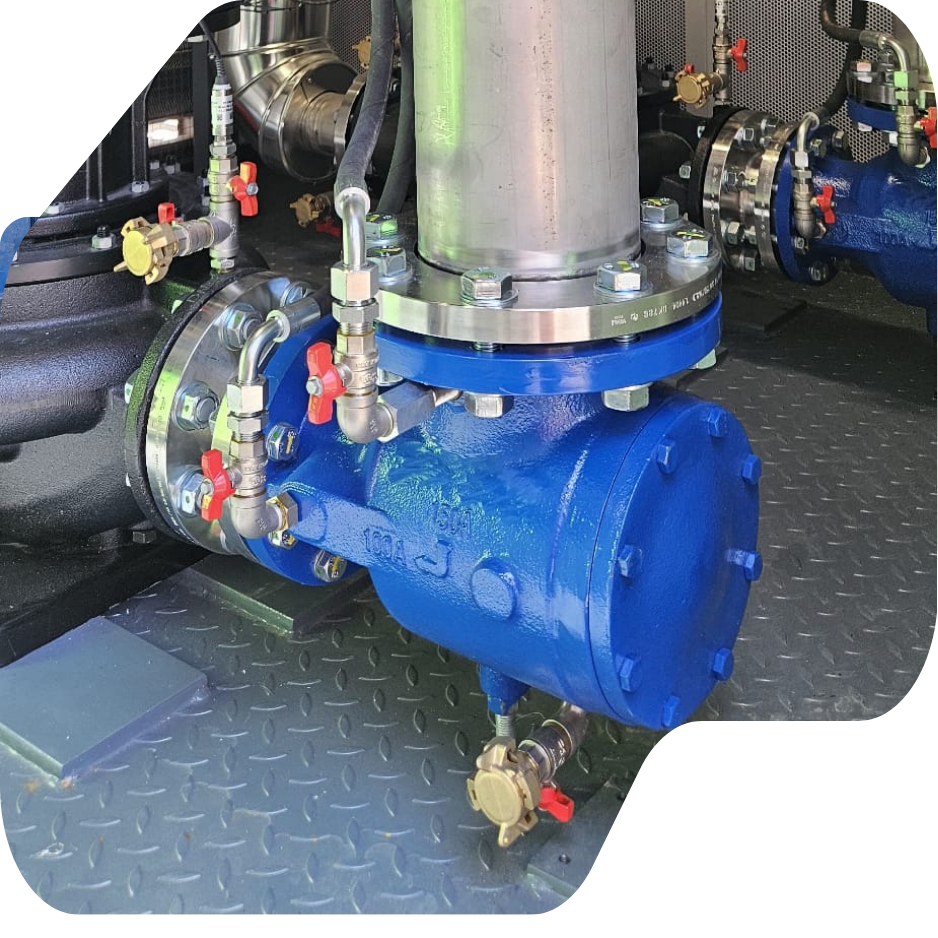

PRESSURE PORT
FOR
DP MONITORING
The Hydro Diffusers are fitted with pressure port upstream and downstream of the cartridge in order to monitor pressure drop. This provides easy connection to accept a monitoring instrument.

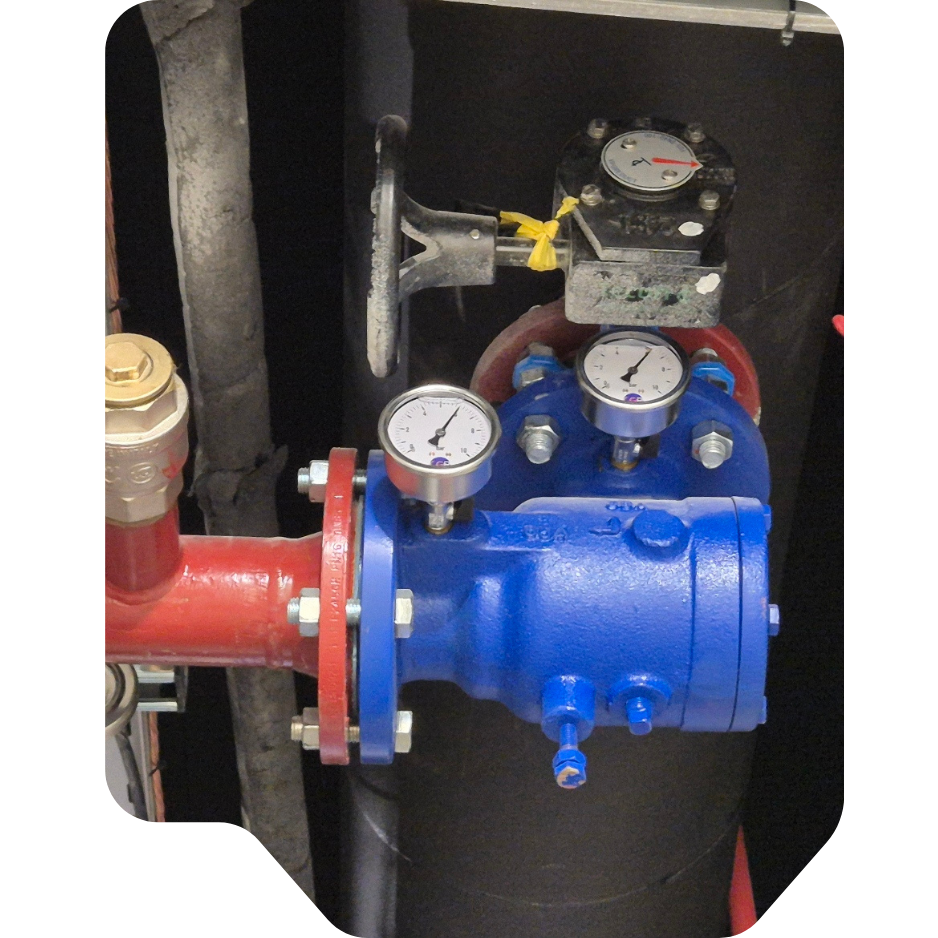

PRESSURE GAUGE
FOR IN-SITU INSPECTION
The pressure port is carefully accommodated to accept pressure gauge for in-situ inspection.

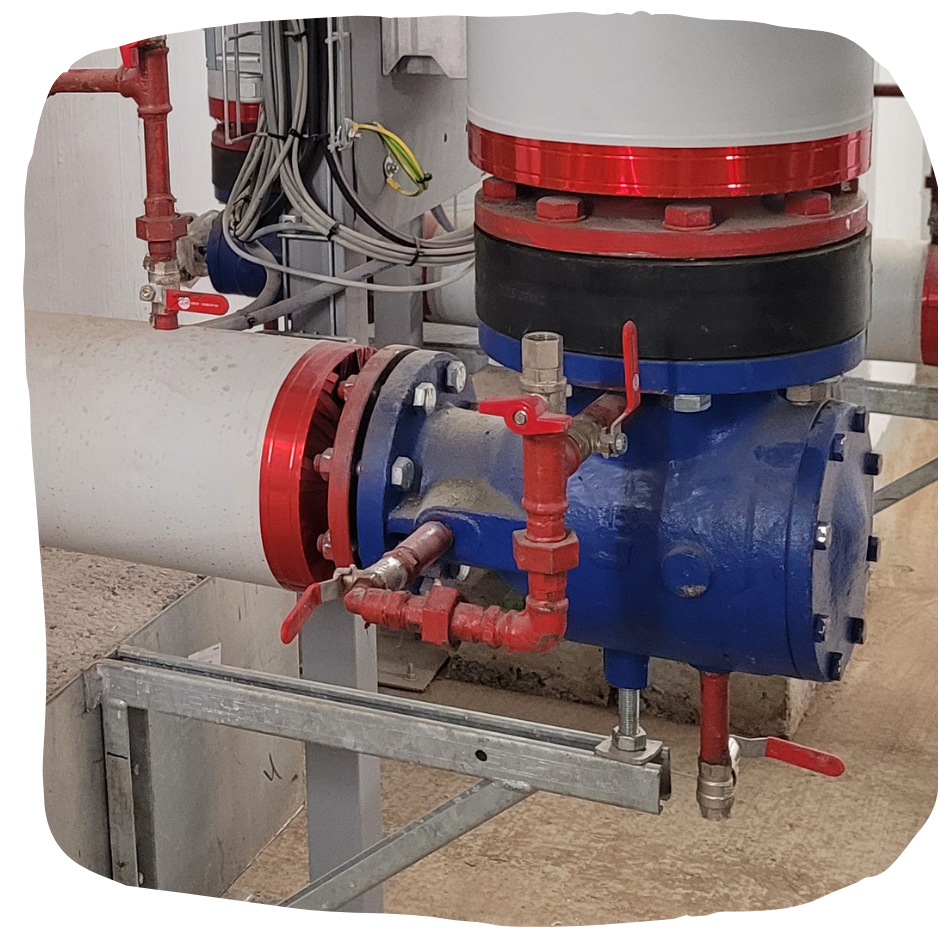

CONTRACTOR
SPECIAL FIT
Aerodynamic pumps—Recommendations for fitting of inlet and outlet on piping.
Flow straightening fins reduce all the fluid particles in order to obtain a linear, stable flow free of turbulence at the pump inlet part.
